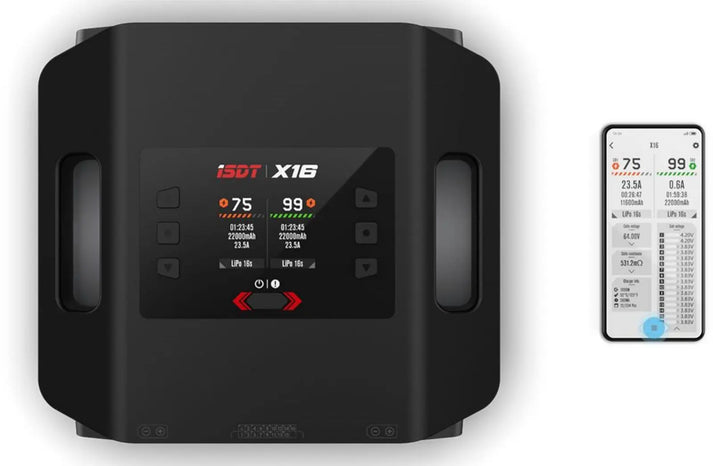

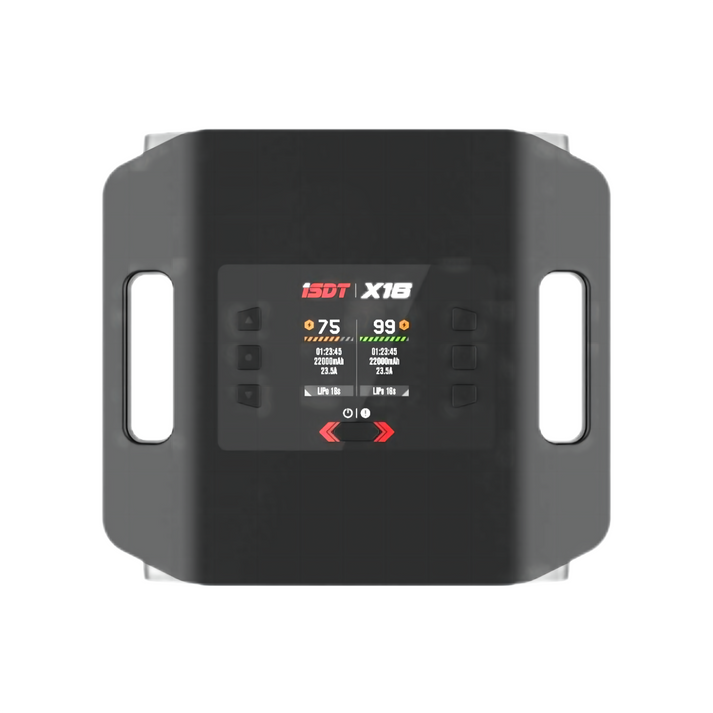

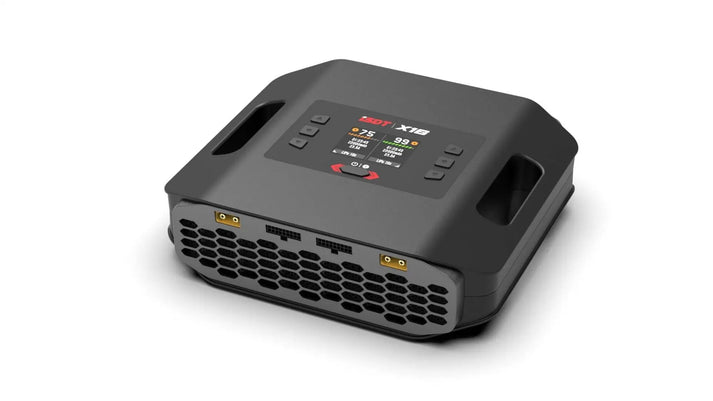

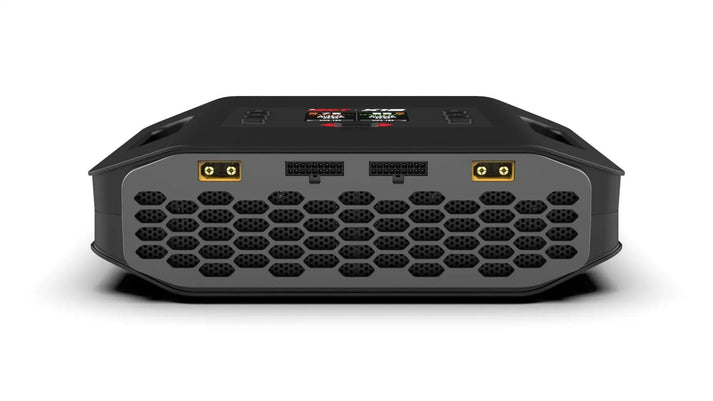

The ISDT X16 is a dual-channel AC smart balance charger designed for lithium battery packs from 2S to 16S. Each channel supports charging currents from 1.0–20.0A and maximum charging power of 1100W at 220V AC. The charger supports LiFe, LiPo, LiHV and ULiHV battery types.
The X16 uses independent charging channels and features synchronous parallel charging, Bluetooth connectivity for operation through the ISD Link app, a 2.8-inch IPS LCD display, and USB-A power output with USB-C firmware upgrade connectivity.
Dual independent charging channels
Supports 2–16S lithium batteries
LiFe battery support
LiPo battery support
LiHV battery support
ULiHV battery support
Charging current: 1.0–20.0A × 2
Maximum charging power: 1100W × 2 at 220V AC
Maximum charging power: 800W × 2 at 110V AC
Maximum total output power: 2200W at 220V AC
Output voltage: 10–72V DC
Maximum discharge power: 50W × 2
Discharging current: 0.5–3.0A × 2
Balance current: 1.5A/cell
18-pin balance ports
Synchronous parallel charging
Maximum parallel charging power: 1800W at 220V AC
Parallel charging current: 21–35A
Bluetooth connectivity
ISD Link app support
Preset charging tasks
OTA firmware upgrade capability
2.8-inch IPS LCD display
178° viewing angle
Adjustable automatic display brightness
Abnormal-voltage alarm
Incorrect-cell-count setting alarm
Independent built-in dual-channel AC power supply
Short-circuit protection
Overload protection
Under-voltage protection
Over-voltage protection
Over-temperature protection
