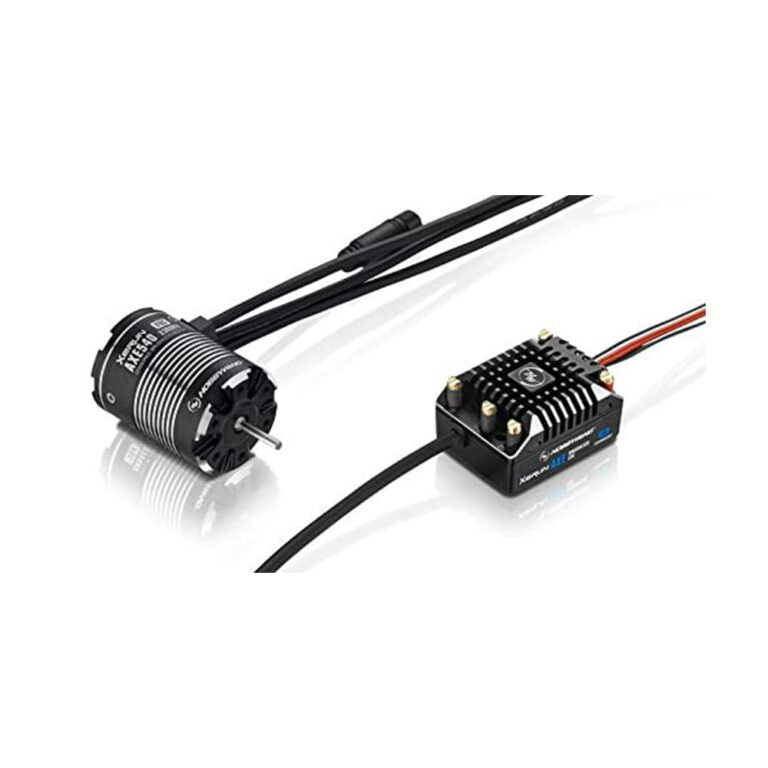

The HOBBYWING Xerun Axe 540-FOC combo includes a sensored brushless motor and ESC designed specifically for 1/10 scale rock crawlers. It features a robust waterproof design with IP67 rating, supports 2-3S LiPo batteries or 6-9 cell NiMH packs, and delivers up to 60A continuous current with peaks of 360A. The ESC supports Bluetooth connection and firmware upgrades for easy tuning, although it lacks traditional programming options like buttons or LCD boxes. The motor is a 4-pole 1200Kv sensored unit, optimized for torque and smooth control on rock crawling vehicles.
- Scale: 1/10th
- Brushless SD FOC Sensored Motor and ESC combo
- Waterproof: Yes (IP67 rated)
- Continuous/Peak Current: 60A/360A
- Input Voltage: 2-3S LiPo / 6-9 Cell NiMH
- BEC Output: Switch Mode 6V/7.4V @ 4A continuous
- Supports Bluetooth connection and firmware upgrade
- Compact ESC size: 47.4×36.2×24.6mm, Weight: 82g
- Motor specs: 4 Poles, 1200Kv, Diameter 36mm, Length 48.8mm, Weight 175g

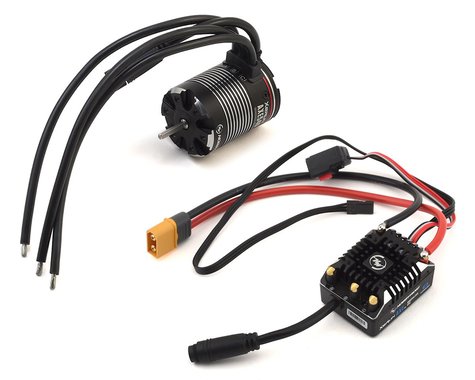

- (1) Hobbywing Xerun Axe 540-Foc 1200Kv Brushless Motor
- (1) Hobbywing Axe FOC ESC (V1.1)
- Standard wiring and connectors (XT60 input connector)
