- Description
- Key Features
- Needed to Complete

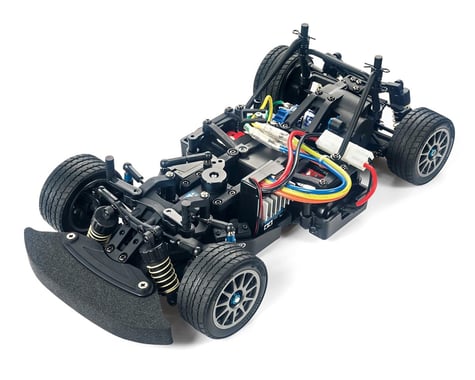

- 1/10 scale R/C model assembly kit
- The chassis is split into front (suspension and servo) and rear (motor and battery) sections. It can be assembled into three different wheelbases: S (210mm), M (225mm) or L (239mm)
- Rear-midship motor powers rear wheels via a differential in the Mid-Rear setup
- Oil-filled differential gear used from the M-07
- Features proven M-07 Concept designs: suspension arms, uprights, suspension mounts and aluminum parts
- Includes CVA oil dampers, universal drive shafts, full ball bearings and hi-torque servo saver
- Comes with updated front suspension mounts (0 degrees) and hub carriers (2 degrees) for a total caster angle of 2 degrees
- Compatible with M-06 Chassis bodies
- Compatible with M-07 Concept Hop-Up Option parts such as Aluminum Rear Suspension Mount (Skid Angle Adjustment) (TAM54787), Aluminum Rear Uprights (TAM54781) and Low-Friction King Pins (TAM54813)
Adjustable Gear Ratio: Yes
Bearings: Full ball bearings
Body: Not Included
Chassis Material: FRP Fiberglass Reinforced Plastic
Chassis Type: M-08
Construction Type: Assembly Kit
Differential Type: Gear-Type (Oil-Filled)
Drive Type: 2WD - RWD
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: 4-wheel fully independent double wishbone
Terrain Use: On-Road
2-Channel Radio
Servo
ESC
Motor
7.2-7.4 volt battery pack & compatible charger
M-chassis body
Tires
Paint
Tools
