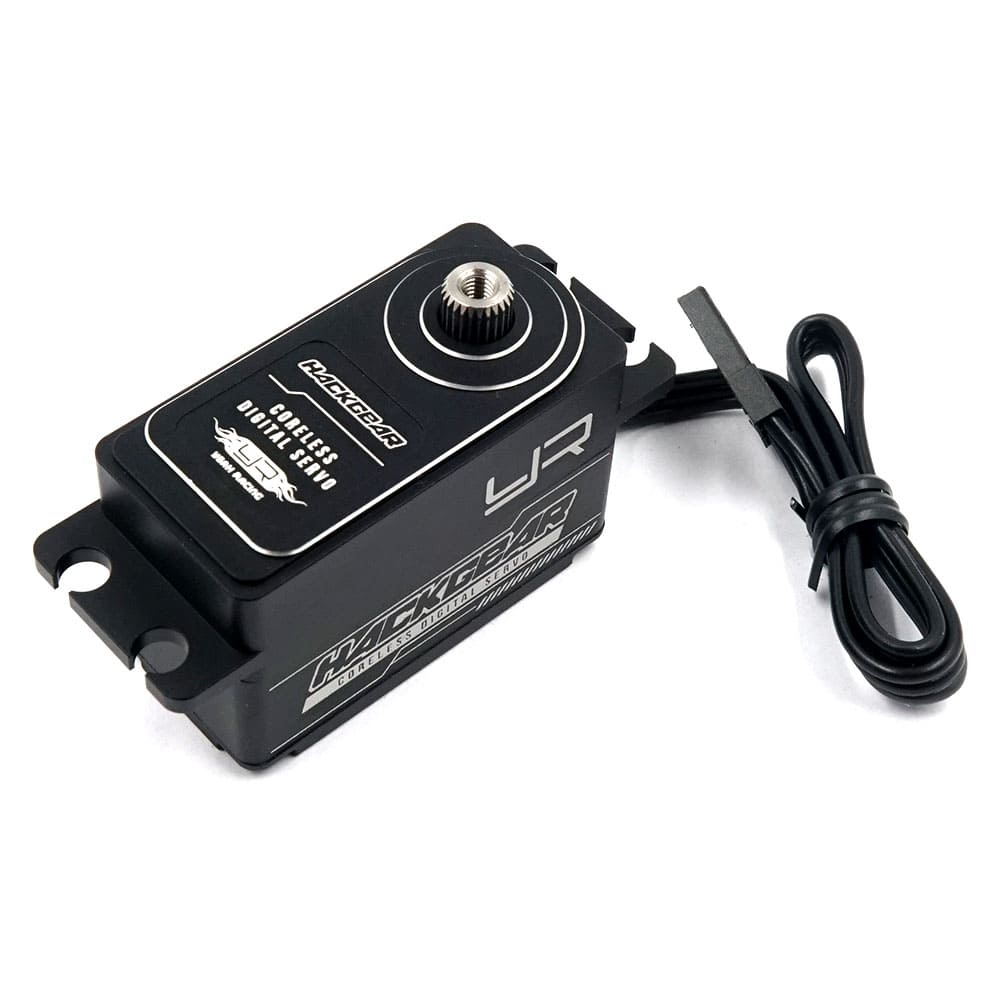

Yeah Racing ALUMINUM CASE LOW PROFILE DIGITAL HIGH SPEED CORELESS SERVO BLACK #YE-0033BK

Description:

Full aluminum case low profile servo for 1/10 applications! Featuring near 10kg’s worth of Torque at 7.4v and a speed of under a tenth of a second will make this servo fit for drift and on-road racing! Full aluminum case ensures all the heat gets dissipated!

Feature:

• Material: Aluminum Case
• Premium Value at lower price point
• Long wears titanium gear and copper gears
• Digital precision provides great accuracy and performance
• Ball bearing-supported output 25T shaft
• Compatible with all types of Radio system
• ESC Min BEC Output Recommendation: 5.75@3A

Specification:

• Type: Digital
• Operating Voltage Range: 4.8 -6.0Volts DC
• Bearing Type:Dual Ball Bearings
• Speed (s/60¢X@4.8V/6.0V): 0.10/ 0.09
• Torque kg./cm. (4.8V/6.0V): 6.72/7.94
• Size: 40.9mm x 20mm x 25.2mm
• Motor Type: Coreless
• Dead Band Width: 2µs
• Connector Wire Length: 11.8 in. / 300 mm.
• Connector Wire Gauge: 25 AWG Black Wire
• Connector Type: Futaba
• Gear Type: Titanium Gears + Copper Gears
• Frequency: 330Hz
• Shaft: 6mm 25T

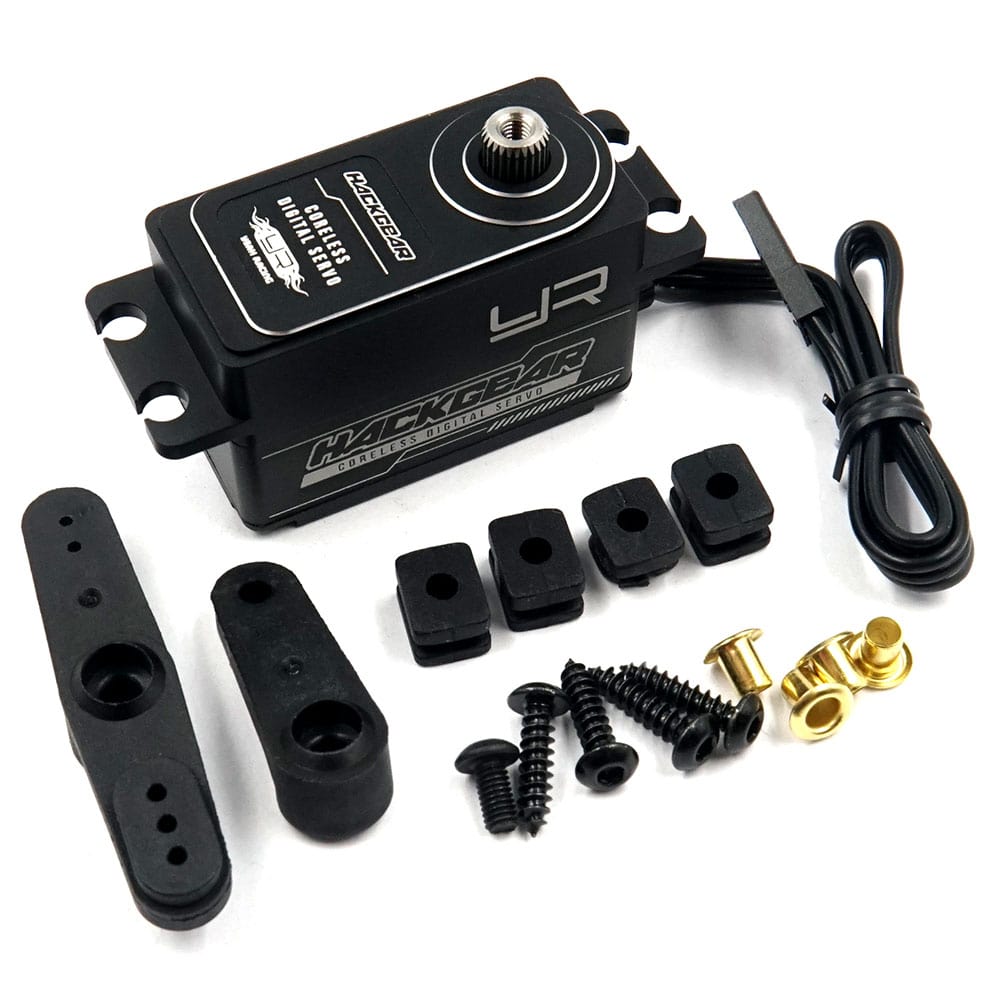

Include:

• Hackgear Aluminum Low Profile Servo (1 pc)
• Servo Horns (1 pc)
• Mounting Hardware (1 pack)
