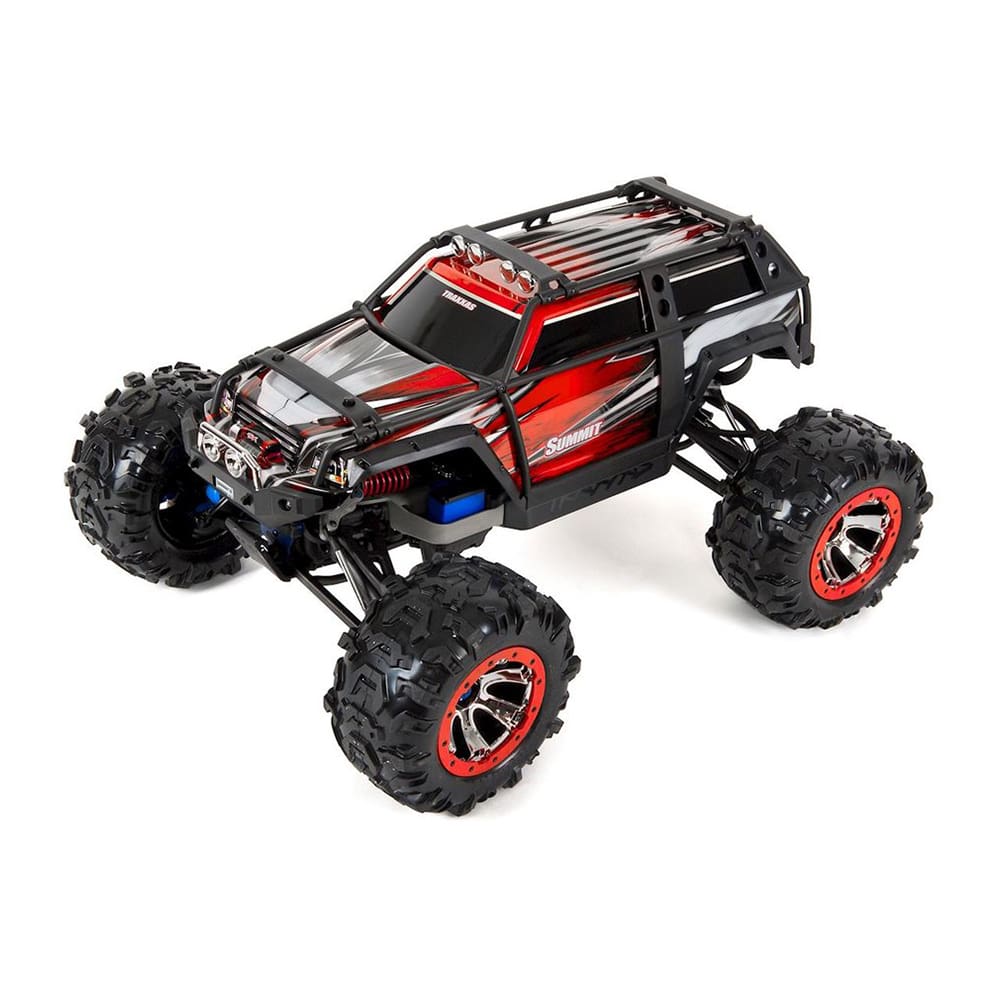

Traxxas Summit 1/10 Scale 4WD #56076-4-Red

Features:

• Transmitter-operated remote locking differentials
• Transmitter-operated high-low transmission
• Titan^® 775 brushed motor w/ 5mm shaft 10 Turn 16.8v
• TQi 2.4GHz 4-channel transmitter and micro receiver w/ Waterproof Receiver Box
• Waterproof 16.8v EVX-2 Electronic Speed Control
• Dual Digital High Torque Waterproof Steering Servos (TRA2075)
• 17mm splined aluminum hex hubs
• Industry’s first dual-CV telescoping half shafts
• Geode™ rims and Canyon AT™ tires
• ExoCage™ body
• 10-LED light system
• Specially tuned long-travel suspension

Specs:

• Length: ­ 22.17 inches (563 mm)
• Front Track: ­ 18.48 inches (470 mm)
• Rear Track: ­ 18.58 inches (472 mm)
• Center Ground Clearance: ­ 4.76 inches (121 mm)
• Weight: ­ 175.66 ounces (4.98 kg) (w/o batteries)
• Height (overall): ­ 12.6 inches (320 mm)
• Wheelbase: ­ 14.84 inches (377 mm)
• Front Shock Length: ­ 87 mm
• Rear Shock Length: ­ 87 mm
• Front Tires (pre-glued): ­ Canyon AT™ (7.1″ x 3.8″)
• Rear Tires (pre-glued): ­ Canyon AT™ (7.1″ x 3.8″)
• Front Wheels: ­ 3.8″ Geode™ (chrome)
• Rear Wheels: ­ 3.8″ Geode™ (chrome)
• Speed Control Type: ­ EVX-2 with Low Voltage Detection  forward/reverse/brake
• Motor (electric): ­ Titan® 775 High-Torque fan cooled (10-turn)
• Transmission: ­ High-low two-speed
• Overall Drive Ratio: ­ Stock out-of-box: 25.34 (high gear)  70.18 (low gear)
• Differential Type: ­ Bevel gear sealed limited slip
• Gear Pitch: ­ 32-pitch
• Chassis Structure/Material: ­ Molded composite Nylon tub
• Brake Type: ­ Electronic
• Drive System: ­ Shaft-driven 4WD
• Steering: ­ Bellcrank
• Radio System: ­ TQi™ 2.4GHz (4-channel)
• Skill Level: 2

Needed to Complete:

• (2) 7 cell Flat 3000mAh NiMH Batteries with Traxxas iD Connector (TRA2923X) OR
• (2) 2 cell 7.4v 5800mAh LiPo Batteries with Traxxas iD Connector (TRA2843X) OR
• (2) 2 cell 7.4v 7600mAh LiPo Batteries with Traxxas iD Connector (TRA2869X)
• Suitable Charger (TRA2972)
• (4) AA Batteries for Transmitter
